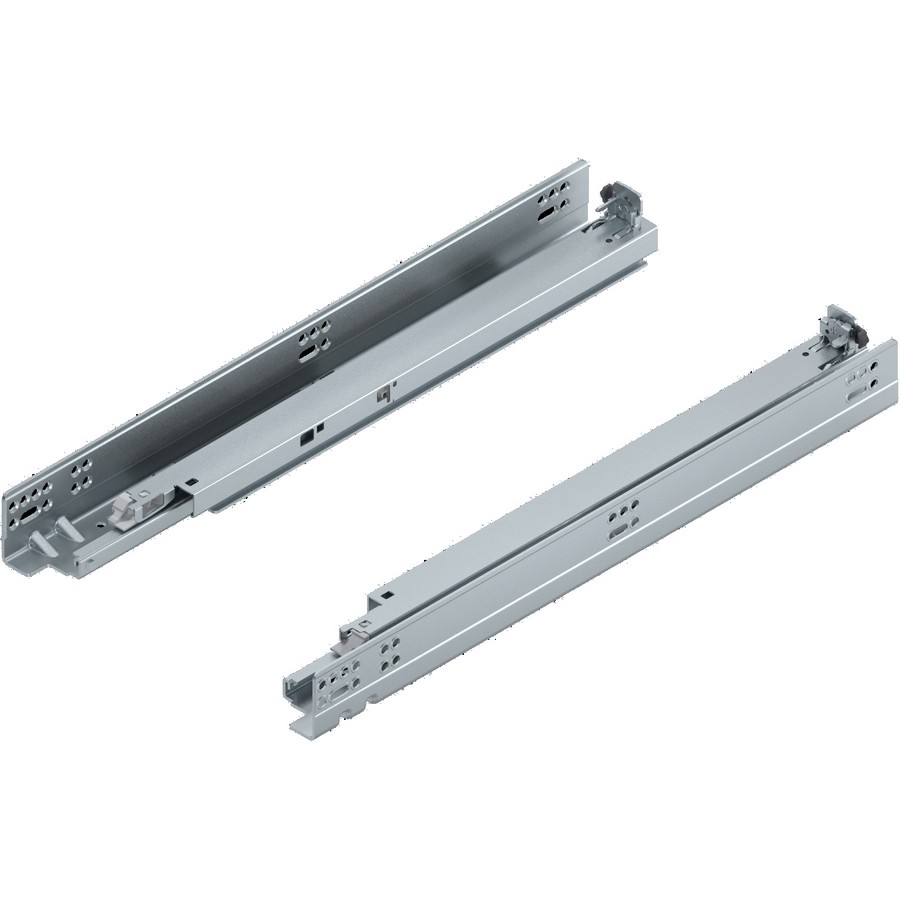

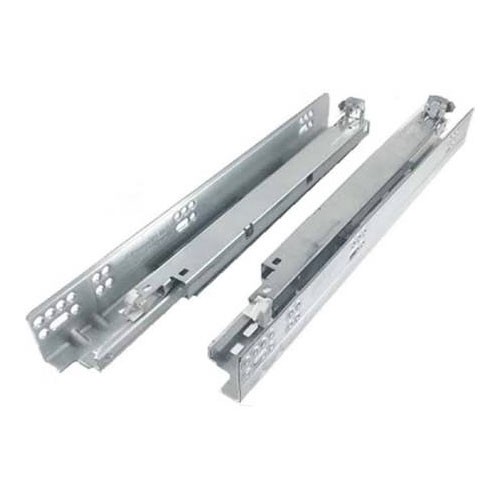

We’ve provided several answers to questions related to Blum 21" TANDEM plus BLUMOTION 563H Soft-Close Undermount Drawer Slide for 1/2" - 5/8" Drawer Side Blum 563H5330B , see some other helpful Q&A related to this product.
Question: Does the drawer slide feature any special adjustments?
Answer: Yes, the blum tandem plus blumotion features four-dimensional adjustment. This allows for precise alignment of the drawer front, ensuring a perfect fit and smooth operation, which is essential for maintaining the aesthetic and functional integrity of the cabinetry.
Question: Will the 21" undermount fit a drawer box with an outside dimension of 22"?
Answer: No. The 21" will be to small. If you have 22" for your outside dimension. You may want to look at our SKU # 11370514.
Question: How do you install the Blum side adjustable front locking device?
Answer: The T51.1901 L&R are simply screwed into the underside front edge of the drawer box. This is part of the function of the 1/2" recess under the drawer box. SKU: 11222100 is a jig for marking the xxxx holes for the locking devices as well as the 6mm bore at the back of the drawer box, it also has a tool kit that can be ordered that has some of the collars and bit holders needed.
Question: Difference between 563H and 563F
Answer: The F series is for 3/4" drawer material. The H series is for 1/2" - 5/8" drawer material
