On the face frame mount, does this hinge have pins sticking out that centers the mount on the face frame or is it flat? My custom hickory cabs are full 3/4 inch hickory. I tried another soft close hinge That had pins on the face mount side that were a "light" 3/4 inch, and wouldn't straddle the cabinet face frame. If I tried to screw it in, it wouldn't lay flat. TIA for any info. What about the Blum 1/2 overlay soft close hinge? Grass 04431A-15 TEC 108° One Piece Face Frame Adj. Soft-Close Hinge, 1/2" Overlay, Screw-on Concealed Compact Cabinet Hinges

Question

On the face frame mount, does this hinge have pins sticking out that centers the mount on the face frame or is it flat? My custom hickory cabs are full 3/4 inch hickory. I tried another soft close hinge That had pins on the face mount side that were a "light" 3/4 inch, and wouldn't straddle the cabinet face frame. If I tried to screw it in, it wouldn't lay flat. TIA for any info. What about the Blum 1/2 overlay soft close hinge? Grass 04431A-15 TEC 108° One Piece Face Frame Adj. Soft-Close Hinge, 1/2" Overlay, Screw-on Concealed Compact Cabinet Hinges

Status: Open Sep 29, 2017 - 12:29 AM

Do you have the same question? Follow this Question

1answer

Answer

Jan 30, 2018 - 08:23 PM

You would have the same issue with the Blum hinge. Your best option would be to order our SKU # 11206536. This is the side mount version of your of this hinge. You will not have the prongs in the back of the mounting plate and this should allow your hinge to lie flat.

View More Product Details

On the face frame mount, does this hinge have pins sticking out that centers the mount on the face frame or is it flat? My custom hickory cabs are full 3/4 inch hickory. I tried another soft close hinge That had pins on the face mount side that were a "light" 3/4 inch, and wouldn't straddle the cabinet face frame. If I tried to screw it in, it wouldn't lay flat. TIA for any info. What about the Blum 1/2 overlay soft close hinge?

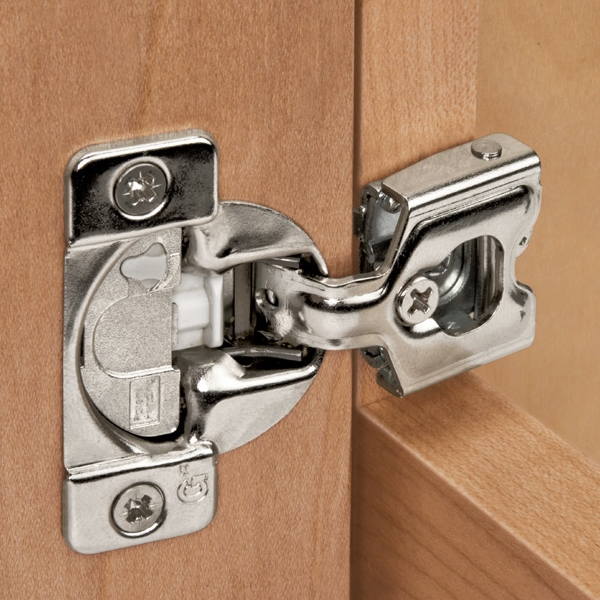

Grass 04431A-15 TEC 108° One Piece Face Frame Adj. Soft-Close Hinge, 1/2" Overlay, Screw-on

Soft-close damper pre-mounted in hinge cup Adjustable switch to regulate closing action No protruding parts or additional pieces needed One piece hinge and base plate combination Sleek design with nickel finish and zinc die cast cover over soft-close mechanism 108 degree(s) opening angle 10.7mm (7/1... See More
