Hi, I'm in the process to replace all my Liberty cabinets’ hinges that are 18 years old but I'm not sure what to order. Currently, the cabinets have: Liberty 35mm, 110 degrees, and full-overlay” - Model: HC11SFC-NP-C5 (Hard Closure) and Model: H32636C-NP-CP (Soft Closure). I need to replace them but I don’t know what to order because your site lists all the parts separately rather than one package. Question: Can you please advise me on which are the parts I need to order in order to replace the old Liberty hinges with new Blum soft-closure? I look forward to hear from you soon so I can place the order. Richard

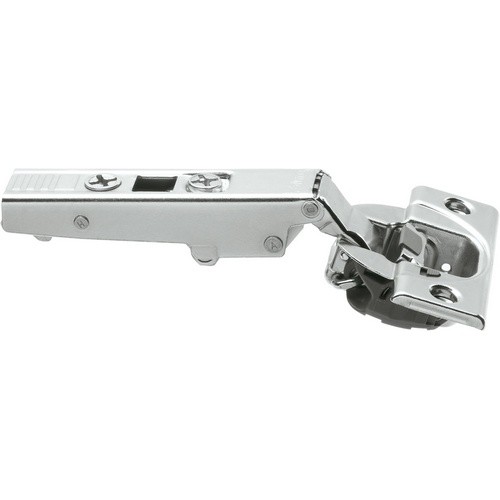

Blum 110° Full Overlay CLIP Top BLUMOTION Hinge Soft-Close Screw-on Blum 71B3550
Concealed European Cabinet Hinges
Status:
Open Jun 28, 2019 - 08:09 PM
1answer
Answer
Jul 02, 2019 - 01:21 AM
The Blum hinge 71B3550 should work. I believe the Liberty hinge had a 45mm boring pattern. Make sure that you have a 13mm cup depth. If you have a frameless cabinet, then a Blum 173H7100 should work for your mounting plate. Or, if you have a face frame cabinet, please let us know and we should be able to help you with a face frame adapter plate.
