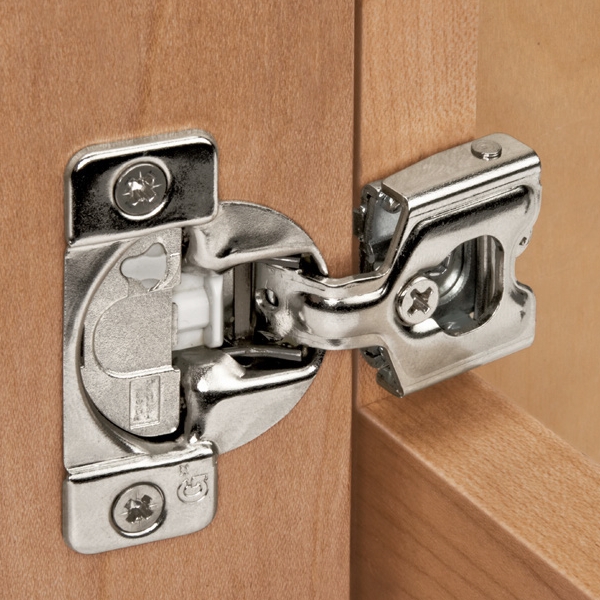

how far from the edge should the Grass 02788A-15 TEC Adjustable Soft-close Hinge, Wrap Mount, 1/4 Overlay, Dowel, 42mm Boring Pattern be drilled? Do they 36 that I ordered come with screws? And above it states that Plate Required Yes and Plate Included Yes, which one is required?
Grass 04429A-15 TEC Soft-Close Hinge, Wrap Mount, 1/4 Overlay, Screw-on, 45mm Boring Pattern
Concealed Compact Cabinet Hinges
Status:
Open Aug 28, 2019 - 06:22 PM
1answer
Answer
Aug 28, 2019 - 07:38 PM
The required Tab distance per Grass is 2.5mm. Tab distance is defined as: the measurement from bottom center of the 35mm hole to the edge of the door. You will need 2 different xxxx types. 5/8" x #6 (2 needed) for the door and 3/4" x #8 (1 needed) for the frame of the cabinet. You can order these screws on our site. Our part #'s are 10409379 for the 5/8" and 10409697 for 3/4" xxxx . Since this is a 1 piece hinge (hinge cup and mounting plate) the required/included plate is provided.
