Answer
Sep 23, 2019 - 04:21 PM
Hello, From the diagram I am seeing on the Grass catalog on page 16 (see link below) the top of the cup looks to be 39mm from the edge. https://www.grassusa.com/downloads/gr...
Noobie question here ! how far in from the edge should the center of the forstner bit be in order to ensure these hinges work properly please ? Grass 02284-15, 108 Degree TEC 863 Face Frame Self-Close Hinge, Overlay 1-7/16" & Greater, Screw-on Concealed Compact Cabinet Hinges
Status:
Open Sep 23, 2019 - 02:43 AM
Do you have the same question? Follow this Question
1answer
View More Product Details

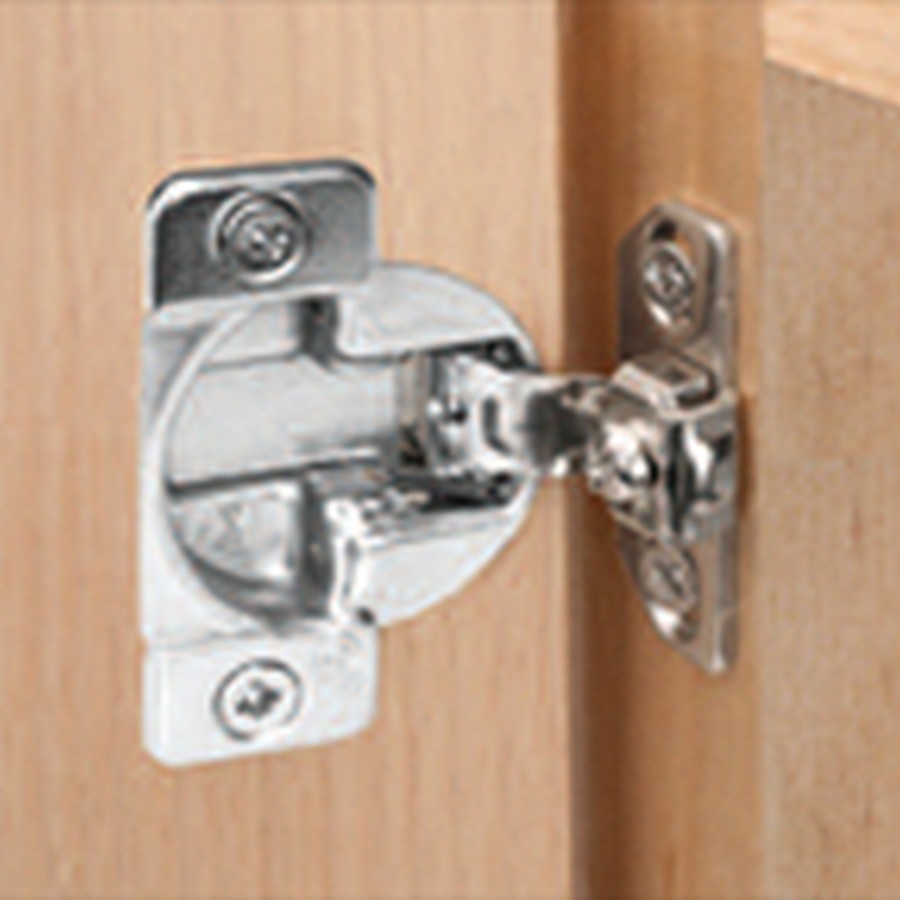

Grass 02284-15, 108 Degree TEC 863 Face Frame Self-Close Hinge, Overlay 1-7/16" & Greater, Screw-on
• One piece hinge and baseplate combination • 2-dimensional adjustment • 11mm (7/16") cup drilling depth • Height adjustment at mounting screw • For overlays 1-7/16" and greater • 85degree angle reduction clip available • Made in USA
