Answer
Mar 29, 2020 - 03:19 PM
Sorry we do not have a template for this hinge. You would use a #6 x 5/8" xxxx but the hinge cup attaches with dowels.
Is a template and jig available for this hinge? What screws should I use? 1/2" Overlay Compact Hinge Soft-Closing Dowel WE Preferred 0683114702961 300 Concealed Compact Cabinet Hinges
Status:
Open Mar 26, 2020 - 10:37 PM
Do you have the same question? Follow this Question
1answer
View More Product Details

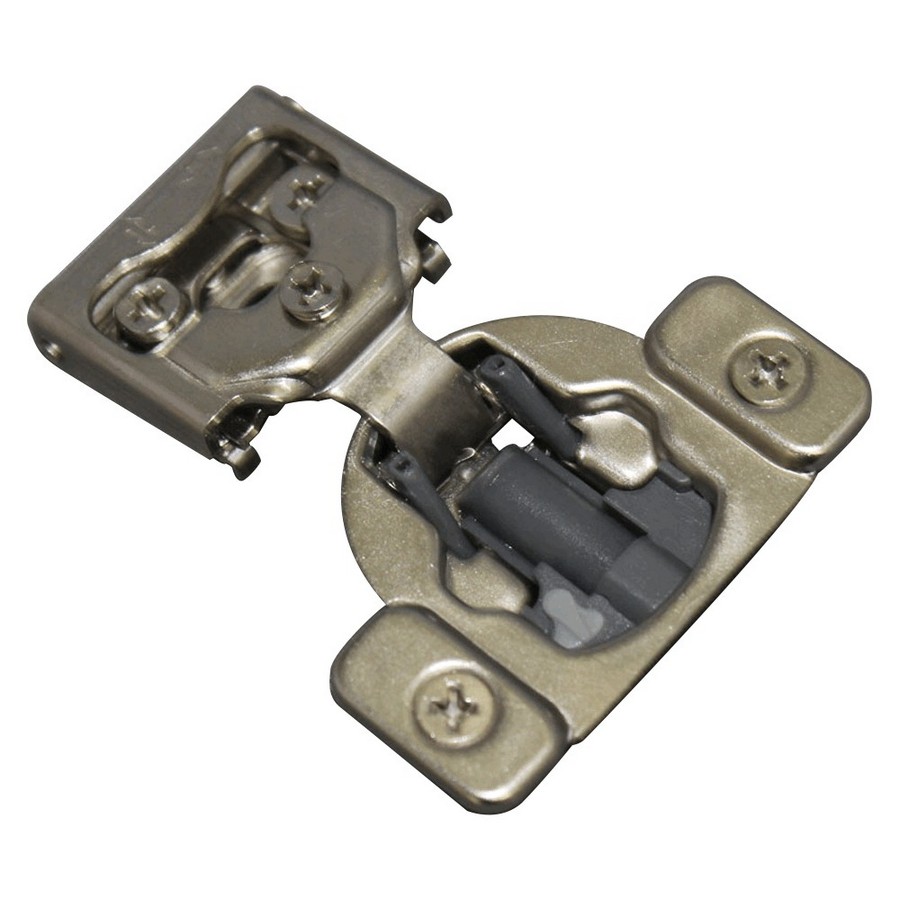

1/2" Overlay Compact Hinge Soft-Closing Dowel WE Preferred 0683114702961 300
• Extra smooth soft-close action • Soft-close mechanism integrated into hinge cup • ANSI/BIFMA/KCMA/BHMA approved • One piece wraparound dowel hinge • Opening angle: 105degree • 2 Cam Hinge: Height adjustment via elongated hole • 3 Cam Hinge: Height adjustment via eccentric cam • Boring pattern: 45m...
