Answer
May 07, 2020 - 04:39 PM
3/4" is the max material thickness for this hinge. The 45mm refers to the distance that the screws are placed apart on the cup
Will this hinge work on 3/4 inch thick material? , I'm not sure what 45 mm boring means. Grass America TEC Soft-Close Hinge Wrap Mount 1/4 Overlay Screw-on 45mm Boring Pattern 04429A-15 Concealed Compact Cabinet Hinges
Status:
Open May 05, 2020 - 06:52 AM
Do you have the same question? Follow this Question
1answer
View More Product Details

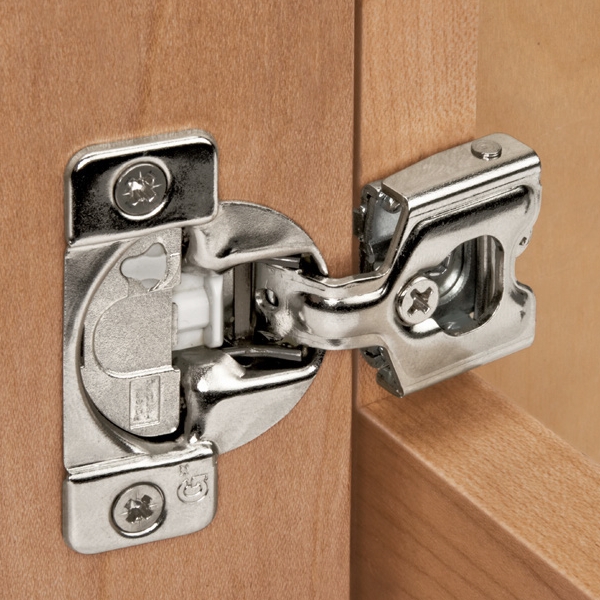

Grass America TEC Soft-Close Hinge Wrap Mount 1/4 Overlay Screw-on 45mm Boring Pattern 04429A-15
Soft-close damper pre-mounted in hinge cup Adjustable switch to regulate closing action No protruding parts or additional pieces needed One piece hinge and base plate combination Sleek design with nickel finish and zinc die cast cover over soft-close mechanism 108 degree(s) opening angle 10.7mm (7/1...
