Answer
Dec 22, 2020 - 09:10 PM
You are required to drill 20mm in the glass for this hinge. The center point of the 20mm holes needs to be 28mm from the edge of the glass.
Does this hinge require drilling holes on the glass door. The hinge of the glass door to a wood cabinet (right side opening) is broken and need replacement. The size of the glass door is 19 1/2" X 4813/18" and weight 18 lb. Thickness of the glass door is 3/16". The glass door has two openings (one near the top and one near the bottom) each of width 14/16” leading to circle of diameter 1 inch. Distance from the edge of the glass to the beginning of the circle is 1 1/4” and to the end of the circle is 2”. Overlay Glass Door Hinge No Catch Chrome Sugatsune GH-456N-CR Glass Door Cabinet Hinges
Status:
Open Dec 17, 2020 - 08:33 PM
Do you have the same question? Follow this Question
1answer
View More Product Details

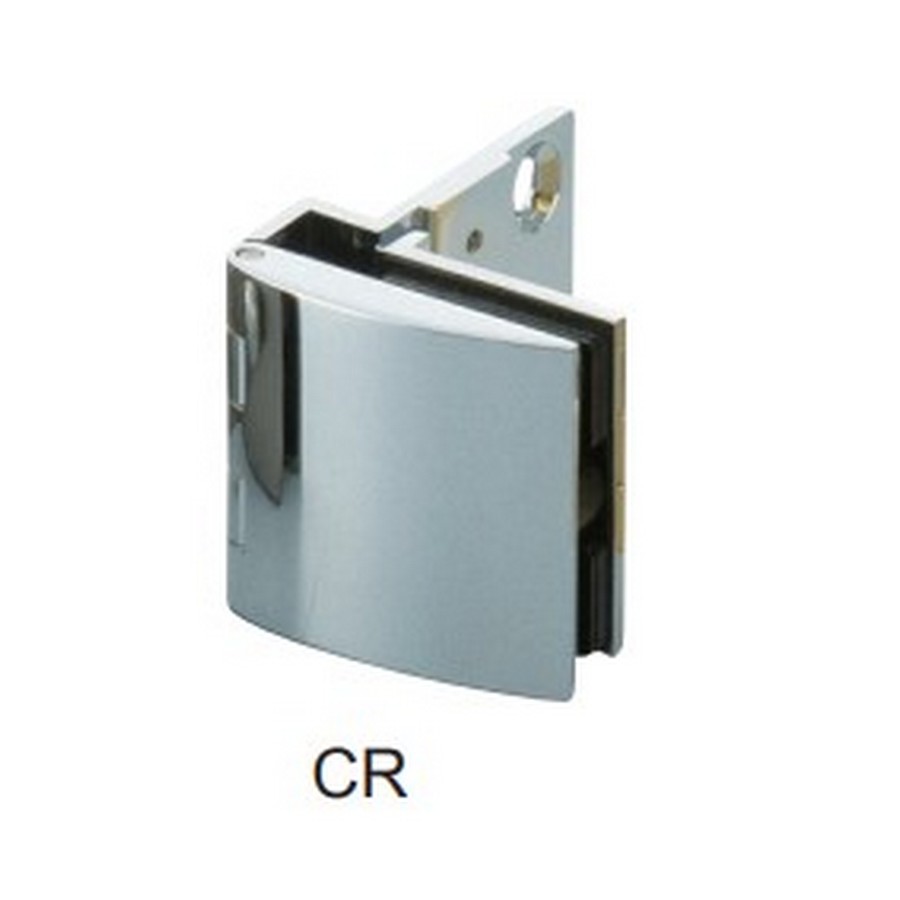

Overlay Glass Door Hinge No Catch Chrome Sugatsune GH-456N-CR
For overlay use Suitable for showcases Mounting position adjustable: Vertically±1 mm Horizontally±1.2 mm With or without catch models available 3 finishes Brass construction
