Answer
Jul 09, 2021 - 12:39 AM
For your tab distance the manufacturer's usually say 2.5mm but we have said 3mm. The boring pattern is the center to center of the xxxx holes. Standard is 45mm but there is also hinge with a 42 or 48mm.
How far from door edge should the cup hole set with 1/4" overlay hinge? Is 3 mm correct? Is the boring pattern the diameter of the cup hole? 1/4" Overlay TEC 864 Wrap Mount Hinge Screw-on Grass 04396-15 Concealed Compact Cabinet Hinges
Status:
Open Jul 08, 2021 - 05:34 PM
Do you have the same question? Follow this Question
1answer
View More Product Details

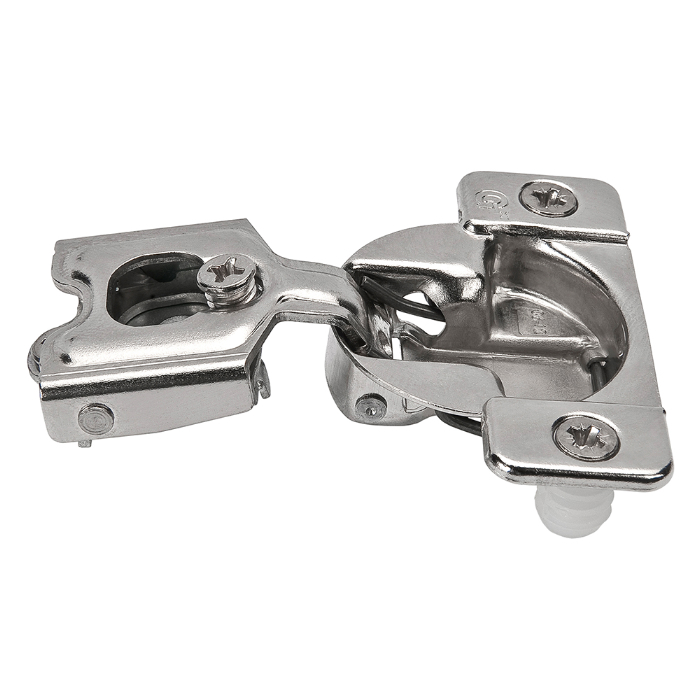

1/4" Overlay TEC 864 Wrap Mount Hinge Screw-on Grass 04396-15
The Grass face frame TEC 864 Series hinge line is made in the USA and is engineered to exceed industry standards for load rating, opening and closing cycles All TEC 864 hinges feature a solid metal cup and all moving mechanism parts have all-steel construction 108 degree(s) TEC 864 hinges are design...
