Answer
Sep 01, 2021 - 02:19 PM
Yes with a 4mm tab distance and the full overlay hinge, you will get a 1/2" overlay. Not to be confused with a true half overlay
Will this plate with a 71b355 hinge give me a 1/2" overlay? Blum 3mm CLIP Cruciform Face Frame Adapter Mounting Plate with Cam Adjustment Screw-on Blum 175H6030 Hinge Mounting Plates
Status:
Open Sep 01, 2021 - 03:59 AM
Do you have the same question? Follow this Question
1answer
View More Product Details

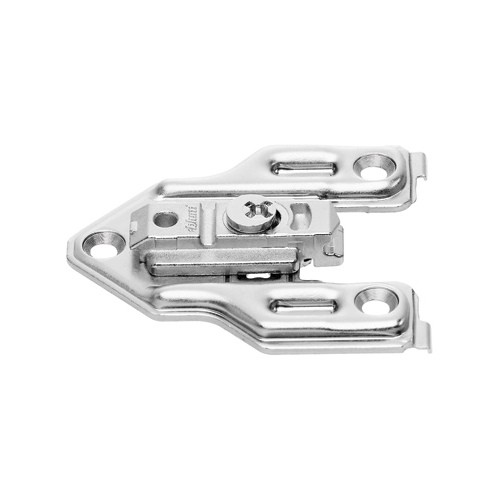

Blum 3mm CLIP Cruciform Face Frame Adapter Mounting Plate with Cam Adjustment Screw-on Blum 175H6030
Mounting plate system: CLIP Mounting plate shape: Cruciform Spacing: 3 mm Material: Zinc Surface: Nickel-plated Bottom part surface: Nickel-plated Mounting: for wood screws Distance between mounting locations: 40 mm Distance cabinet front edge to first mounting location: 9.5 mm Mounting plates heigh...
