can someone post what is distance from door edge to center of cup distance? Thank you

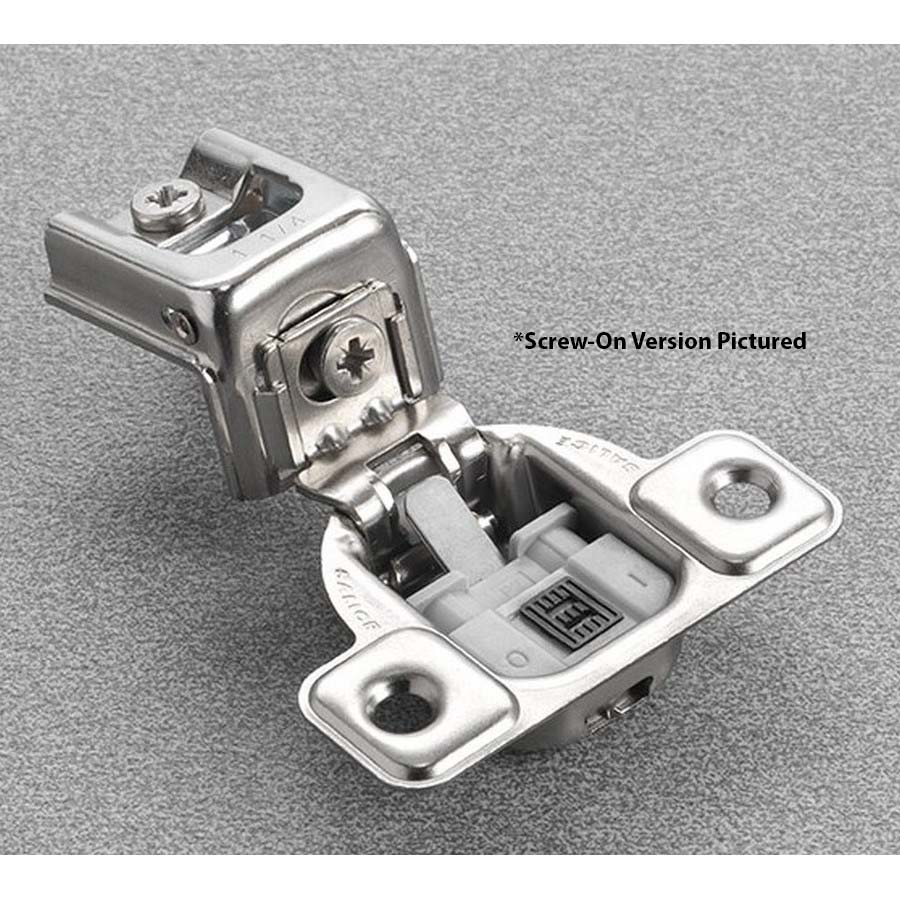

Salice CUP32D9 106° Soft-Closing Hinge, 1" Overlay, 2 Cam, Screw-On
Concealed Compact Cabinet Hinges
Status:
Open Feb 13, 2022 - 04:59 PM
2answers
Answers
Feb 22, 2022 - 06:16 AM
3mm
Aug 21, 2023 - 09:17 AM
According to the SALICE install documentation for this model, the overlay shown is dependent on drilling so the cup is 2.5mm from the door edge. Since the cup is 35mm diameter, that would mean the center of the cup hole would be 17.5mm + 2.5mm = 20mm from the edge of the door.
