Answer
Apr 10, 2022 - 02:48 PM
If you have a Kreg hinge jig (our part # 11362512 ). You would set it up on 3mm.
Can you tell me the edge of door to cup hole measurement or the edge of door to center of cup hole measurement for drilling the cup hole? 1/2" Overlay Compact Hinge Soft-Closing Dowel WE Preferred 0683114702961 300 Concealed Compact Cabinet Hinges
Status:
Open Mar 28, 2022 - 06:52 PM
Do you have the same question? Follow this Question
1answer
View More Product Details

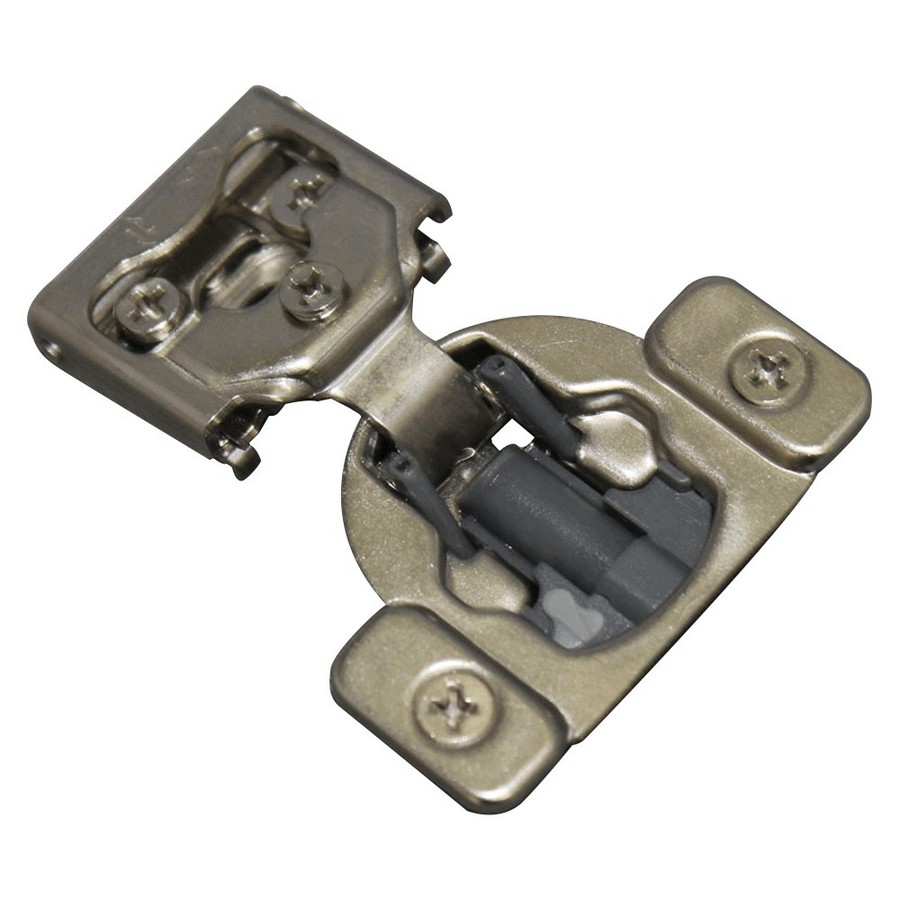

1/2" Overlay Compact Hinge Soft-Closing Dowel WE Preferred 0683114702961 300
• Extra smooth soft-close action • Soft-close mechanism integrated into hinge cup • ANSI/BIFMA/KCMA/BHMA approved • One piece wraparound dowel hinge • Opening angle: 105degree • 2 Cam Hinge: Height adjustment via elongated hole • 3 Cam Hinge: Height adjustment via eccentric cam • Boring pattern: 45m...
