Answer
Sep 21, 2022 - 09:49 PM
If you are using the 71B3790 hinge in a face frame application. You will need to use our part # 11399100. This will allow to mount to the inside wall behind the face frame.
I am building some Cabinets with Face Frame Application to utilize 110° Inset CLIP Top BLUMOTION Hinge Soft-Close Inserta Blum 71B3790. The face frame thickness is approximately 20mm (3/4 inc), hence, I am looking for an Hinge Plate that can be used on this narrow mounting surface with vertical height adjustability. Can you please make a recommendation for a Hinge Plate for this. Appreciate your help. Thank you for your assistance. Kind Regards, Jerry Blum 110° Inset CLIP Top BLUMOTION Hinge Soft-Close Inserta Blum 71B3790 Concealed European Cabinet Hinges
Status:
Open Sep 03, 2022 - 04:16 PM
Do you have the same question? Follow this Question
1answer
View More Product Details

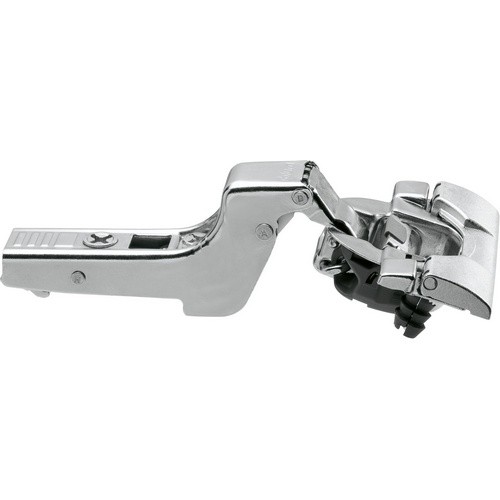

Blum 110° Inset CLIP Top BLUMOTION Hinge Soft-Close Inserta Blum 71B3790
Opening angle: 110° Cranking: Inset door application CLIP Top BLUMOTION Hinge cup assembly: INSERTA Hinge cup material: Steel hinge cup Closing mechanism: with spring Side adjustment: +/- 2 mm Depth adjustment: plus 3/minus 2 mm, convenient with spiral screw How to Choose A Blum Hinge Mo...
