I have a 45 degree corner cabinet with Mepla hinge 502.205.76.00. the baseplate has a number 592.293 90.00. What replacement hinges and plates do you recommend. My cup is 35mm drilled 5mm from cabinet door edge, and with 48mm screw spacing. I'd like the cabinet to swing the complete 135 degrees if possible. What base plate works with this hinge? Grass America 95° Nexis Hinge +45 Diagonal Corner Screw-on 148.405.06.0315 Concealed European Cabinet Hinges

Question

I have a 45 degree corner cabinet with Mepla hinge 502.205.76.00. the baseplate has a number 592.293 90.00. What replacement hinges and plates do you recommend. My cup is 35mm drilled 5mm from cabinet door edge, and with 48mm screw spacing. I'd like the cabinet to swing the complete 135 degrees if possible. What base plate works with this hinge? Grass America 95° Nexis Hinge +45 Diagonal Corner Screw-on 148.405.06.0315 Concealed European Cabinet Hinges

Status: Open Oct 14, 2022 - 12:09 AM

Do you have the same question? Follow this Question

1answer

Answer

Oct 24, 2022 - 11:52 PM

Mepla no longer produces cabinet hardware as they were acquired by Grass USA years ago. You would need to replace all hinges and bases on each door the new are used on. The 35mm bore will match as will the corner application. Screw holes will be in different positions. Use the hinge SKU: 10334433 with base plate SKU: 10286578. The hinge opens to 95*

View More Product Details

I have a 45 degree corner cabinet with Mepla hinge 502.205.76.00. the baseplate has a number 592.293 90.00. What replacement hinges and plates do you recommend. My cup is 35mm drilled 5mm from cabinet door edge, and with 48mm screw spacing. I'd like the cabinet to swing the complete 135 degrees if possible. What base plate works with this hinge?

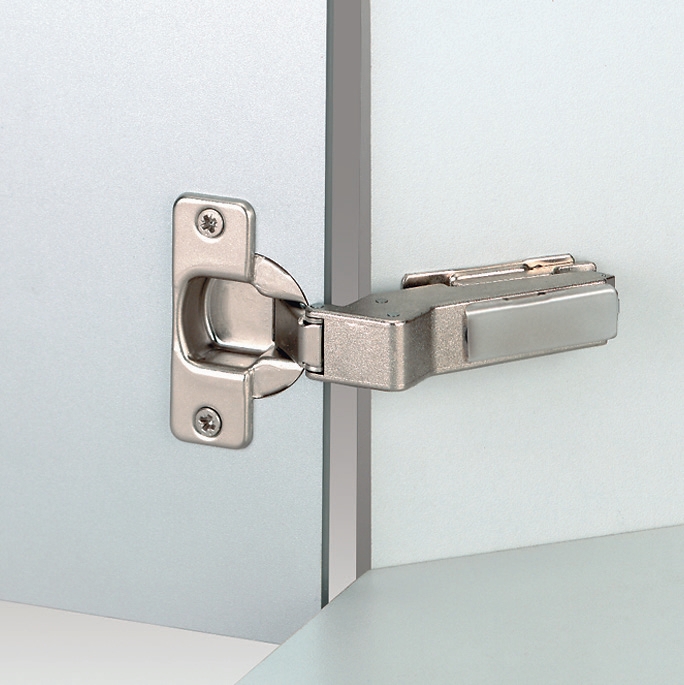

Grass America 95° Nexis Hinge +45 Diagonal Corner Screw-on 148.405.06.0315

Grass America's Nexis and Nexis Impresso (toolless cabinet door fastening design) angled hinges are designed for frameless and face frame cabinets Nexis positive and negative angle hinges have: - Cup depths of 11.8mm (Nexis) and 12mm (Nexis Impresso) - Hinge cup edge drilling distance of 3mm to ... See More

View Details
