Answer
Dec 20, 2022 - 05:33 PM
1/2" overlay can be achieved using a 3mm base plate. (Bore distance would be 5mm from the edge of the door.)
What mounting plate is needed for blum 170 degree # 71t6550 hinge to achieve a 1/2 " overlay? This is a face frame application. Blum 170° Full Overlay CLIP Top Hinge Self-Close Screw-on Blum 71T6550 Concealed European Cabinet Hinges
Status:
Open Dec 20, 2022 - 07:32 AM
Do you have the same question? Follow this Question
1answer
View More Product Details

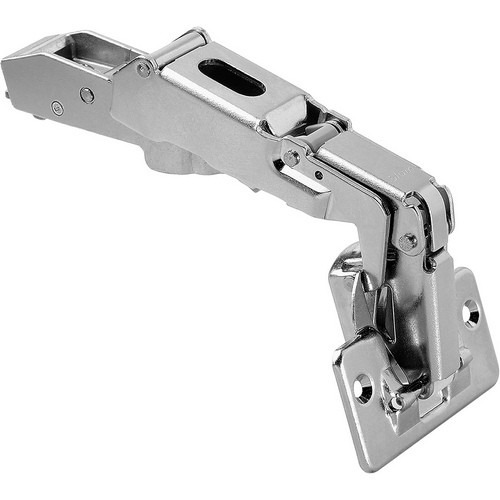

Blum 170° Full Overlay CLIP Top Hinge Self-Close Screw-on Blum 71T6550
Opening angle: 170° Cranking: Corner merge application Hinge cup assembly: screw-on Hinge cup material: Steel hinge cup Closing mechanism: with spring Side adjustment: +/- 2 mm Depth adjustment: plus 3/minus 2 mm, convenient with spiral screw How to Choose A Blum Hinge Mounting Plate Cho...
