What is the tab on this product for a 1-1/4" thick door?

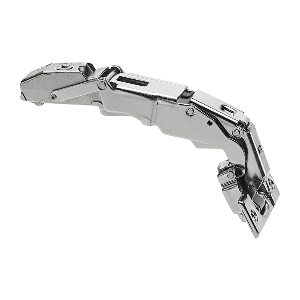

Blum 125° Full Overlay Zero Protrusion CLIP Top BLUMOTION Hinge for Thick Door Soft-Close Dowel Blum 71B7580D
Concealed European Cabinet Hinges
Status:
Open Jan 05, 2023 - 04:23 PM
1answer
Answer
Jan 05, 2023 - 10:46 PM
These hinges are designed for doors with a maximum thickness of 30mm (1 3/16"). (For thicknesses greater than 1 3/16", it is recommended that a mock up be done before boring doors to be sure that all works correctly.) The tab distance (bore distance) will depend on the overlay. With a 0mm base plate, you can achieve overlays from 14mm to 19mm using tab distances from 3mm to 8mm respectively.
