Answer
Feb 14, 2023 - 08:45 PM
This is a 3mm mounting plate. There are multiple overlays you can achieve based on drilling distance and hinge selections.
what is the overlay dim. ? Blum 3mm CLIP Cruciform Mounting Plate with Cam Adjustment Screw-on Blum 173H7130 Hinge Mounting Plates
Status:
Open Feb 14, 2023 - 07:58 PM
Do you have the same question? Follow this Question
1answer
View More Product Details

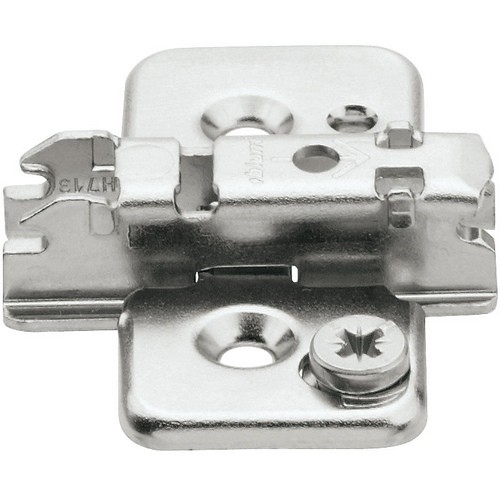

Blum 3mm CLIP Cruciform Mounting Plate with Cam Adjustment Screw-on Blum 173H7130
Mounting plate system: CLIP Mounting plate shape: Cruciform Spacing: 3 mm Material: Steel Surface: Nickel-plated Bottom part surface: Nickel-plated Mounting: for wood screws Distance between mounting locations: 32 mm Distance cabinet front edge to first mounting location: 37 mm Mounting plates heigh...
See More
View Details
