Answer
Oct 02, 2023 - 05:13 PM
All compact style hinges should have a boring distance of 3mm from the edge of the door to the edge of the 35mm bore hole.
what is drilling distance from edge of door to achieve 3/4" overlay? Salice CUR34D9R 106° Soft-Closing Hinge, 3/4" Overlay, 3 Cam, Dowel Concealed Compact Cabinet Hinges
Status:
Open Oct 01, 2023 - 06:18 PM
Do you have the same question? Follow this Question
1answer
View More Product Details

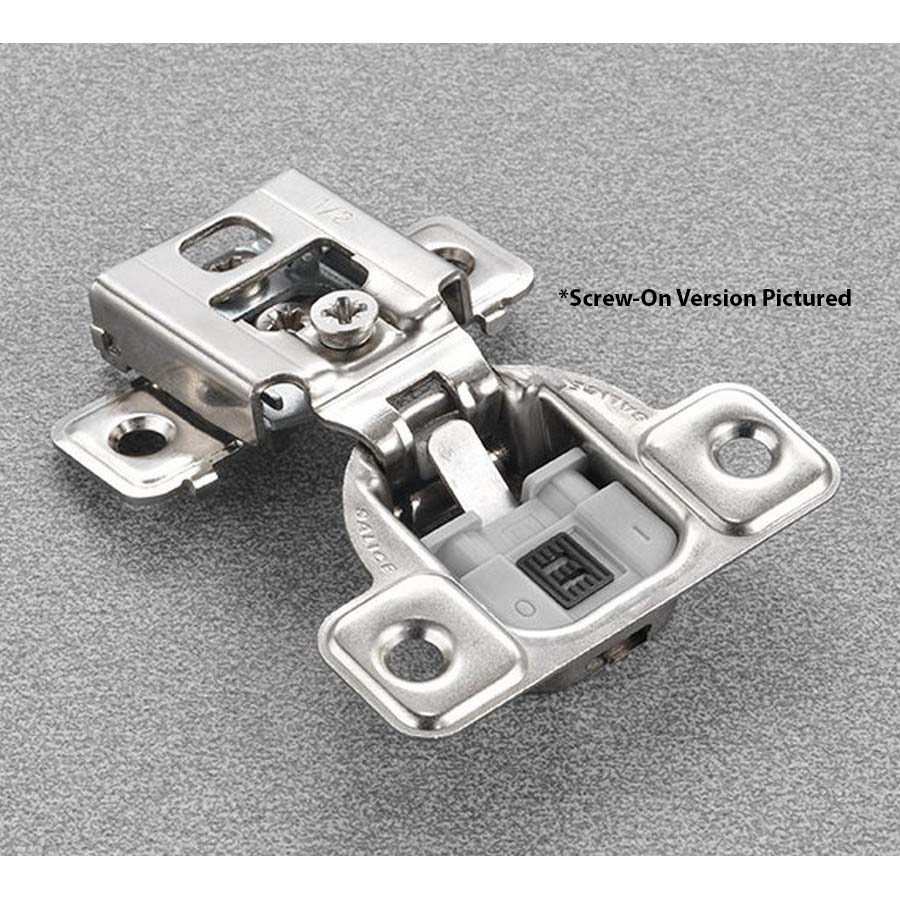

Salice CUR34D9R 106° Soft-Closing Hinge, 3/4" Overlay, 3 Cam, Dowel
• 106° Opening • 11mm (7/16") cup depth for all hinges in the line • Integrated soft close mechanism can be deactivated • Possible drilling distance on the door 2.5mm - 6.0mm (3/32" - 1/4") • Finish: Nickel plated steel
