Do you have the same question? Follow this Question
May 13, 2025 - 01:07 PM

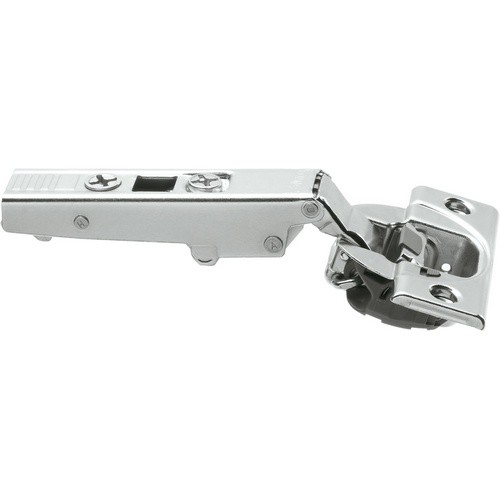

We’ve provided several answers to questions related to Blum 110° CLIP top BLUMOTION Full Overlay Soft-Closing Hinge Screw-On Installation Nickel-Plated 71B3550 , see some other helpful Q&A related to this product.
Question: What is the maximum door thickness that this hinge supports?
Answer: The hinge supports a maximum door thickness of 26mm. This capacity allows the 71b3550 blum to be used with a wide range of cabinet door designs, from thinner to more robust styles.
Question: What type of closing mechanism does the hinge have?
Answer: The hinge on the 71b3550 features a soft-closing mechanism. This means the hinge gently closes the cabinet door, reducing noise and preventing slamming, which helps prolong the life of the cabinet.
Question: Which hinge restriction add-on do I use with this hing
Answer: The restriction clip for this hinge is SKU: 11183337
Question: Hi, I'm in the process to replace all my Liberty cabinets’ hinges that are 18 years old but I'm not sure what to order. Currently, the cabinets have: Liberty 35mm, 110 degrees, and full-overlay” - Model: HC11SFC-NP-C5 (Hard Closure) and Model: H32636C-NP-CP (Soft Closure). I need to replace them but I don’t know what to order because your site lists all the parts separately rather than one package. Question: Can you please advise me on which are the parts I need to order in order to replace the old Liberty hinges with new Blum soft-closure? I look forward to hear from you soon so I can place the order. Richard
Answer: The Blum hinge 71B3550 should work. I believe the Liberty hinge had a 45mm boring pattern. Make sure that you have a 13mm cup depth. If you have a frameless cabinet, then a Blum 173H7100 should work for your mounting plate. Or, if you have a face frame cabinet, please let us know and we should be able to help you with a face frame adapter plate.
Question: How wide does the hinge open?
Answer: The 39c355b.22 hinge opens up to 110 degrees, allowing for ample access to the interior of cabinets, which is particularly useful for wide or deep cabinets.

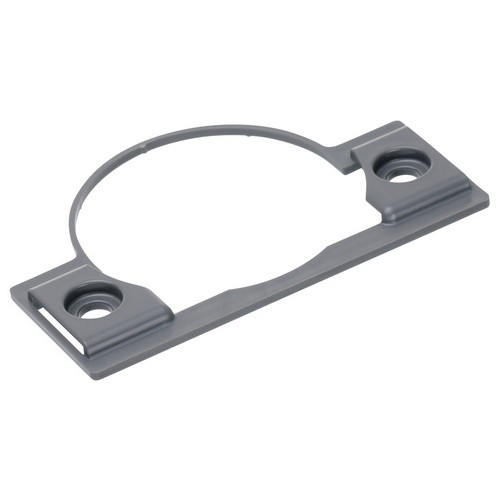

Question: Is the hinge cup spacer stackable?
Answer: No, the hinge cup spacer 70T3507.21 is not stackable. Its non-stackable design ensures a single, consistent layer for optimal hinge support and alignment.
Question: What are the dimensions of the hinge cup spacer?
Answer: The hinge cup spacer, part number 70T3507.21, measures 58 mm in length and 39 mm in height. These dimensions are optimized for efficient performance and compatibility with a wide range of hinge systems, ensuring a secure and stable installation.
Question: What is the length of the hinge cup spacer?
Answer: The length of the hinge cup spacer 70T3507.21 is 58 mm. This measurement ensures a precise fit for standard hinge applications, maintaining the integrity and functionality of your cabinetry.

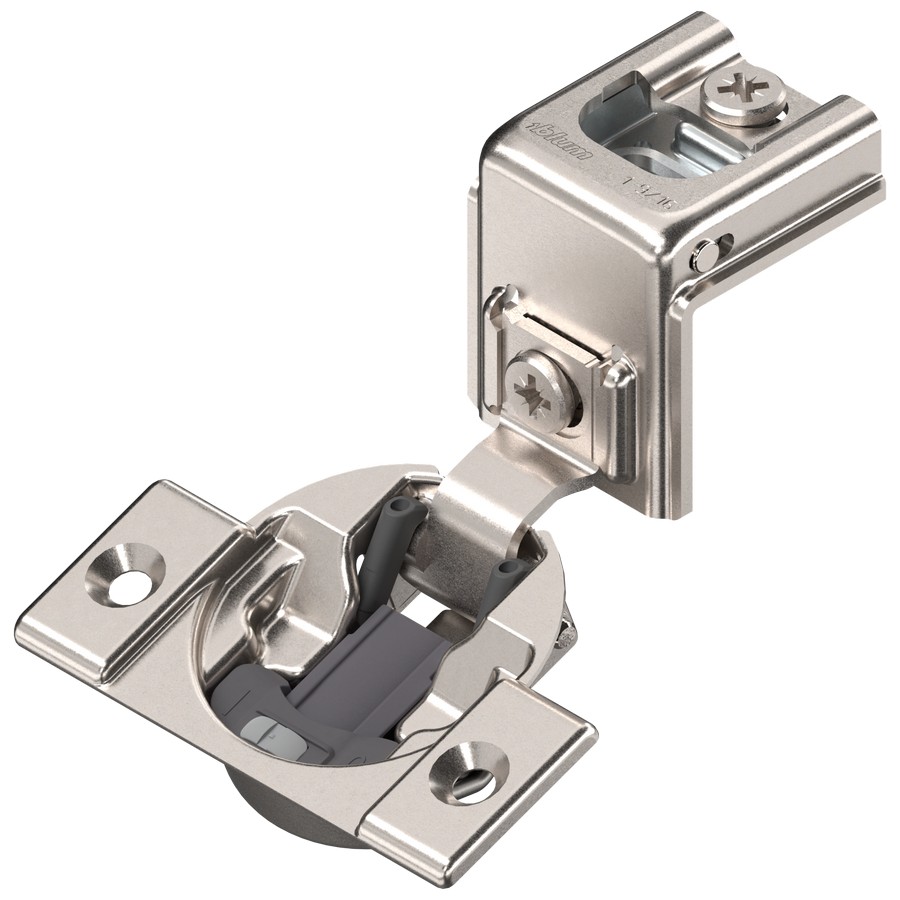

Question: Is this cup spacer compatible with a Blum Compact 33 hinge?
Answer: I would try try this one for the best possible outcome. Its not directly for that model but that hinge is no longer produced
