Answer
May 13, 2025 - 02:32 PM
For frameless full overlay, use 173H7100. This base plate uses sharp pointed wood screws for installation. (606N-100)
Will a face frame mounting plate work with frameless cabinets? Blum 107° Full Overlay CLIP Top Hinge Self-Close Screw-on Blum 75T1550 Concealed European Cabinet Hinges
Hi. I need some help choosing the correct cabinet mounting plate. I'm building some frameless cabinets with full overlay doors, and I've picked out this hinge: 107° Full Overlay CLIP Top Hinge Self-Close screw-on Blum 75T1550. I figure my overlay should be about 16mm. When I use the tool on your web page to help me select the cabinet plate, it eliminates every choice except this one: 0mm CLIP Cruciform Face Frame Adapter Mounting Plate with Flange screw-on Blum 175L6600.24, but I don't think that can be correct because the description says "Face Frame Adapter", and I won't have face frames -- I'll be mounting to the cabinet wall. (From the pictures, I had assumed that this one: 175H7100 might work, but your selection tool discarded this choice.) So now I don't know which one will work. Thank you.
Status:
Open May 13, 2025 - 02:32 PM
Do you have the same question? Follow this Question
1answer
View More Product Details

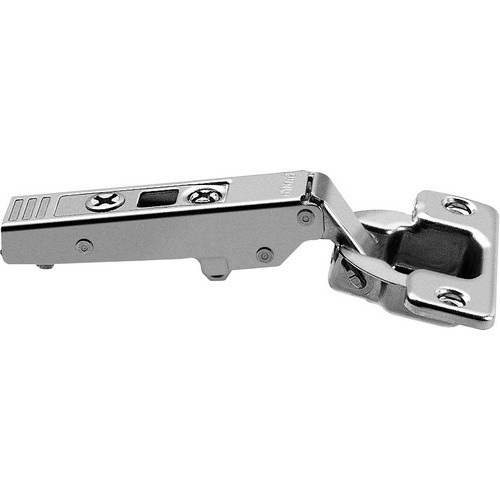

Blum 107° Full Overlay CLIP Top Hinge Self-Close Screw-on Blum 75T1550
Opening angle: 107° Cranking: Corner merge application Hinge cup assembly: screw-on Hinge cup material: Steel hinge cup Closing mechanism: with spring Side adjustment: +/- 2 mm Depth adjustment: plus 3/minus 2 mm, convenient with spiral screw How to Choose A Blum Hinge Mounting Plate Cho...
