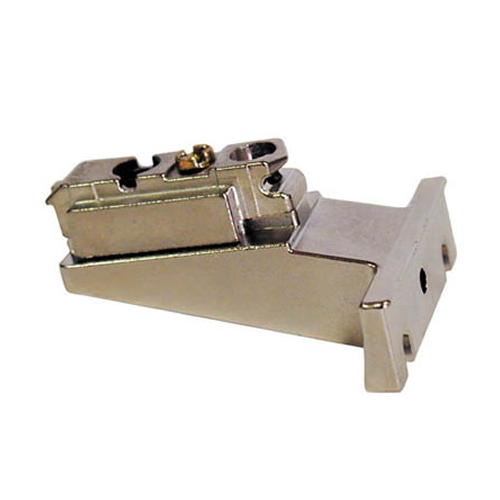

We’ve provided several answers to questions related to Blum 9mm CLIP Inset Face Frame Adapter Mounting Plate with Cam Adjustment Screw-on Blum 175H5030.21 , see some other helpful Q&A related to this product.
Question: Blum for full inset face frame cabinets?
Answer: Yes, when paired with the half overlay hinge
Question: what kind of mounting screw should I use with these? I noticed #6 flat head, sth else?
Answer: Blum recommends 3/4" X #8 Truss Head Screws
Question: Is this the same as Blum 175H500-01.23? Will it work with Blum 71B355? If so, which screws should I use to mount both hinge and plate?
Answer: Yes, the numbers on the back are component numbers. These bases attach to the back of the frame and require a minimum of 5/8" to use. ****IMPORTANT: This base is used with a Half Overlay/Partial Overlay hinge*** (Blum number 71B3650)
Question: Is this the same as Blum# 175H500-01.21
Answer: Yes. This mounting plate is to be used with the half crank hinge.
