Answer
Jul 02, 2025 - 06:35 AM

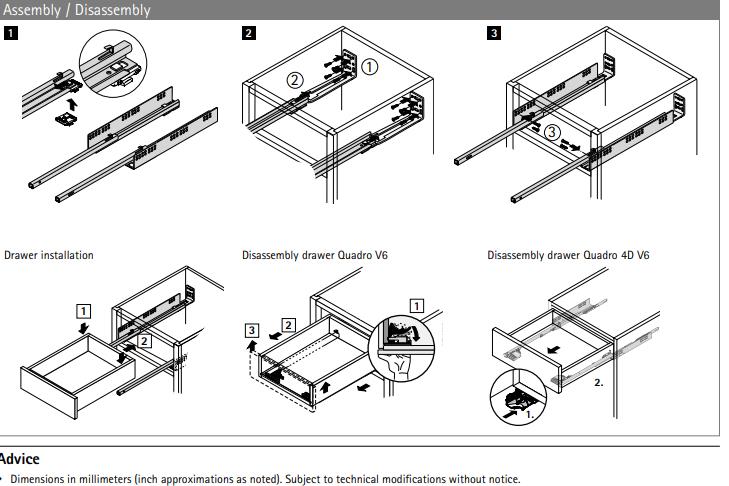

Here is the assembly diagram from Hettich's Quadro V6 product PDF. https://web.hettich.com/fileadmin/med...
f
f
where can we find installation instructions Quadro V6 520mm Soft-Close Full Extension Undermount LH Drawer Slide Hettich 9 047 772 Undermount Drawer Slides
Need a diagram, etc.
Status:
Open Jul 02, 2025 - 06:35 AM
Do you have the same question? Follow this Question
1answer
View More Product Details

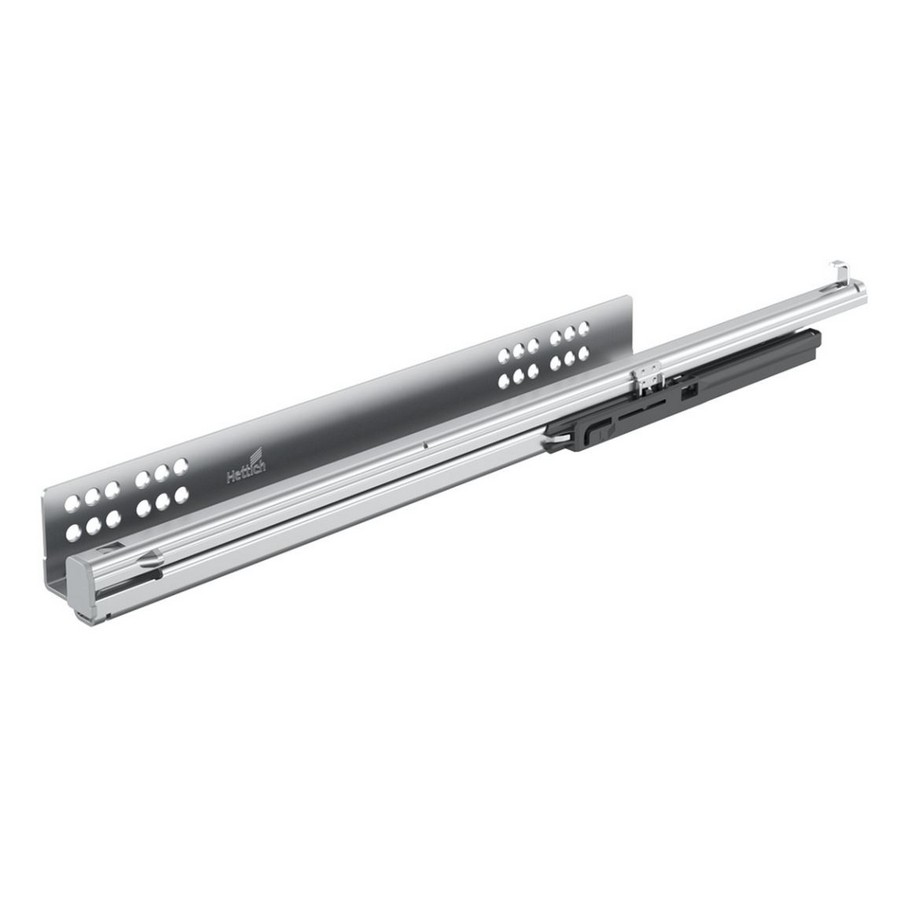

Quadro V6 520mm Soft-Close Full Extension Undermount LH Drawer Slide Hettich 9 047 772
Quadro V6 Full Extension Undermount Slide with Silent System 90lbs load capacity Integrated Silent System closes the drawer quietly and gently Convenient slide on installation with catches and tool-less height adjustment Load capacity to EN 15338, Level 3 Galvanized steel, suitable for rooms exposed...
