Answer
Aug 13, 2025 - 08:26 AM
The hinge has a 1/2" overlay, which is the distance the door overlaps the cabinet frame. This measurement is crucial for ensuring the door fits correctly and functions smoothly.
What is the overlay measurement for the hinge? Blum COMPACT CLIP 30C 105° Edgemount Hinge 1/2" Overlay Soft-Closing Screw-On Blum 30C255B.E8 Concealed Compact Cabinet Hinges
Status:
Open Aug 13, 2025 - 08:26 AM
Do you have the same question? Follow this Question
1answer
View More Product Details

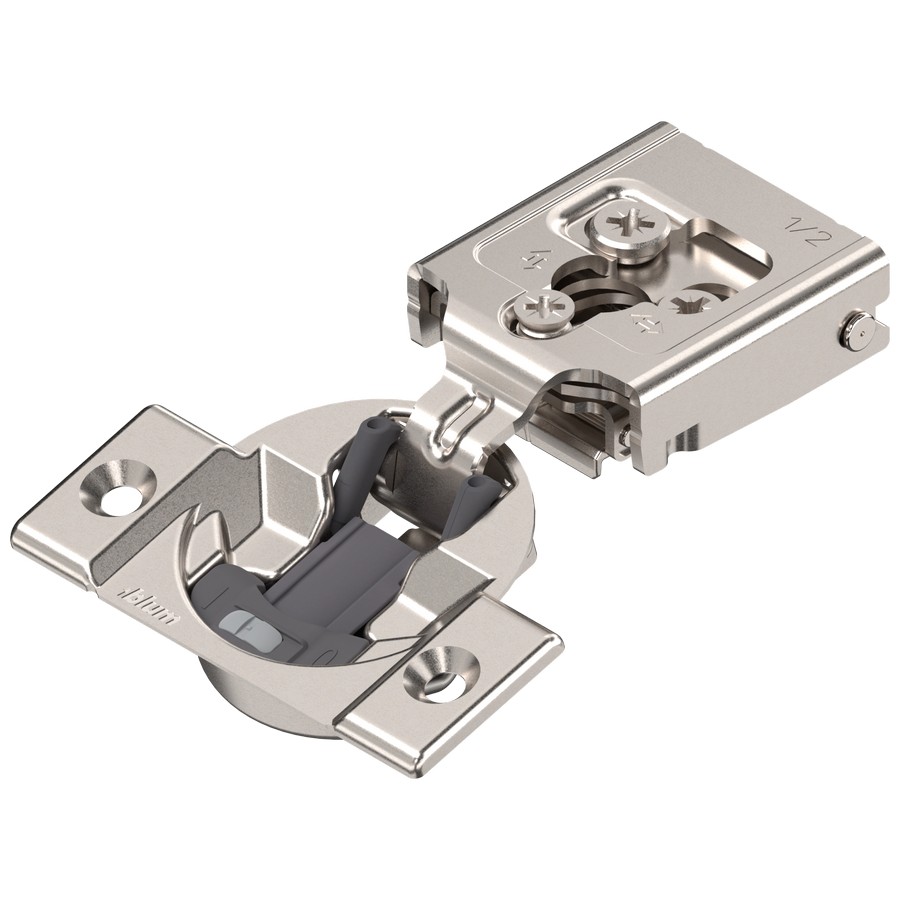

Blum COMPACT CLIP 30C 105° Edgemount Hinge 1/2" Overlay Soft-Closing Screw-On Blum 30C255B.E8
COMPACT CLIP hinge 30C255B.E8 Opening angle: 105° Closing mechanism: with spring Design and positioning on the frame: Edge mount Boss material: Steel boss, Nickel plated Boss assembly: screw-on overlay in inches: 1/2 Height adjustment: +/- 2 mm, with cam Gap: 4.8 mm
