Answer
Aug 18, 2025 - 09:09 AM
The distance from the cabinet front edge to the first mounting location for the Blum 174h7100e is 37 mm. This measurement helps in aligning the mounting plate perfectly, ensuring smooth door operation.
What is the distance from the cabinet front edge to the first mounting location? Blum 0mm CLIP Cruciform Mounting Plate with Cam Adjustment EXPANDO Blum 174H7100E Hinge Mounting Plates
Status:
Open Aug 18, 2025 - 09:09 AM
Do you have the same question? Follow this Question
1answer
View More Product Details

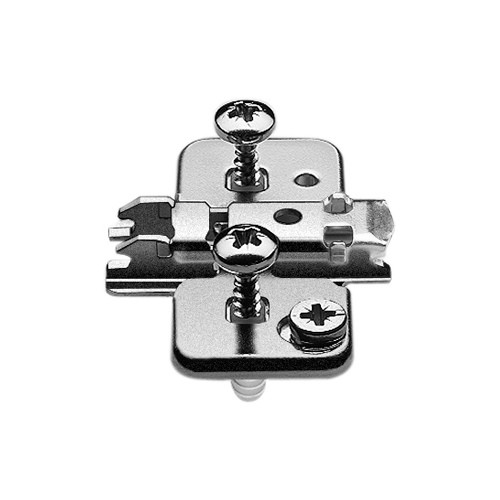

Blum 0mm CLIP Cruciform Mounting Plate with Cam Adjustment EXPANDO Blum 174H7100E
Mounting plate system: CLIP Mounting plate shape: Cruciform Spacing: 0 mm Material: Steel Surface: Nickel-plated Bottom part surface: Nickel-plated Mounting: EXPANDO (pre-mounted screws with split dowels) Distance between mounting locations: 32 mm Distance cabinet front edge to first mounting locati...
See More
View Details
