Answer
Feb 25, 2026 - 09:39 AM

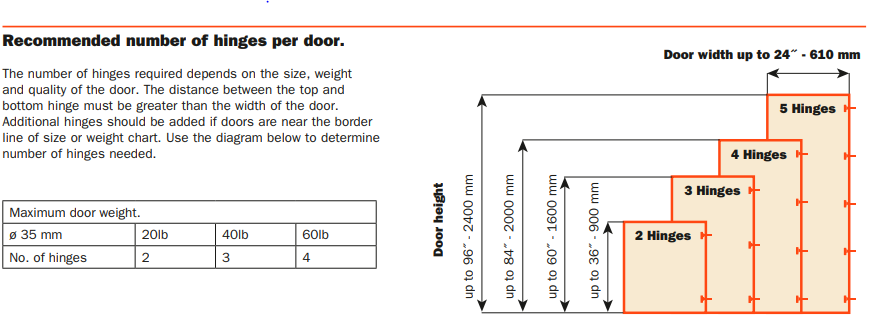

Attached is information from the manufacturer to help guide your decision.
![]()
What is the hinge weight rating? Salice CUP34D9R 106° Soft-Closing Hinge, 3/4" Overlay, 3 Cam, Screw-On Concealed Compact Cabinet Hinges
I would be using this hinge on a pantry cabinet that has racks mounted directly to the doors. I plan to use 4-5 hinges per door. The doors are 18" wide and have six shelves 4" deep attached to each door.
Status:
Open Feb 25, 2026 - 09:39 AM
Do you have the same question? Follow this Question
1answer
View More Product Details
Salice CUP34D9R 106° Soft-Closing Hinge, 3/4" Overlay, 3 Cam, Screw-On
• 106° Opening • 11mm (7/16") cup depth for all hinges in the line • Integrated soft close mechanism can be deactivated • Possible drilling distance on the door 2.5mm - 6.0mm (3/32" - 1/4") • Finish: Nickel plated steel
View Details
Browse by Category
Concealed Compact Cabinet Hinges
View our complete selection of Concealed Compact Cabinet Hinges to find the one that suites your needs.
View All
View all Concealed Compact Cabinet Hinges Questions & Answers
More Questions We've Answered Related to This Product
We’ve provided several answers to questions related to Salice CUP34D9R 106° Soft-Closing Hinge, 3/4" Overlay, 3 Cam, Screw-On , see some other helpful Q&A related to this product.
-
Question: How is this product sold?
Answer: It is sold in multiples of 1 and priced by each unit. This allows for flexibility in purchasing the exact number of hinges needed for a project.
-
Question: What is the cup depth of this hinge?
Answer: The cup depth is 11mm. A deeper cup allows for a more secure fit and better alignment with the cabinet door.
-
Question: How is this hinge mounted?
Answer: The hinge is mounted using a screw-on method along with a 35mm/ 1 3/8" hole
-
Question: What type of closing mechanism does this hinge have?
Answer: It features a soft-closing mechanism. This mechanism prevents slamming, reducing noise and wear on the cabinet and door.
-
Question: What is the overlay size for this hinge?
Answer: The hinge has a 3/4" overlay. This size ensures that the door covers the cabinet frame partially, offering a sleek and modern look.
-
Question: What is the degree of opening for this hinge?
Answer: The hinge opens to 106 degrees. This degree of opening provides ample access to the cabinet interior, making it easier to reach items inside.
-
Question: Are the mounting screws included with the Salice CUP34D9R hinge ?
Answer: Screws are not included. Use 10409379
-
Question: what is the tab setting
Answer: Your tab setting should be 3mm.
