Answer
Dec 08, 2025 - 01:40 PM

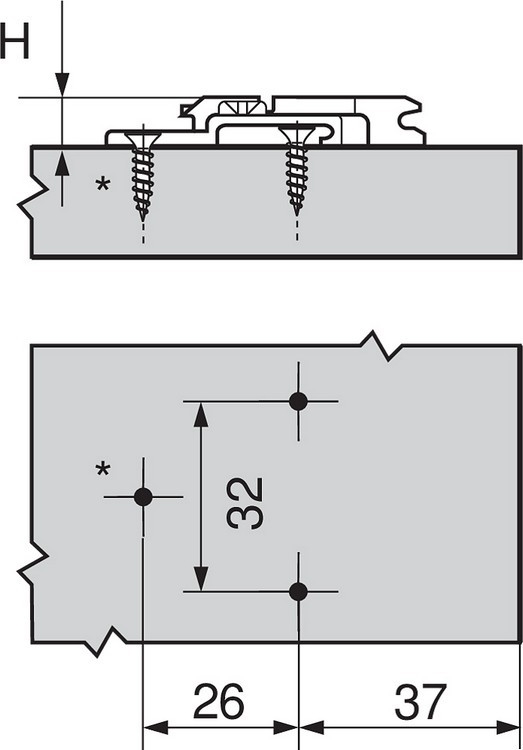

The front holes are 37mm from the face of the cabinet. Here is a picture from Blum
How deep in cabinet frame do I need to place the wing plate? I'd prefer not to try the trial and error method! haha Blum 155° CLIP top BLUMOTION Half Overlay Zero Protrusion Wide Angle Hinge Screw-on Installation Nickel-Plated 71B7650 Concealed European Cabinet Hinges
It seems like this will be an exact science and I'd prefer not to try the trial and error method to figure it out if someone already knows the answer...
Status:
Open Dec 08, 2025 - 01:40 PM
Do you have the same question? Follow this Question
1answer
View More Product Details
Blum 155° CLIP top BLUMOTION Half Overlay Zero Protrusion Wide Angle Hinge Screw-on Installation Nickel-Plated 71B7650
• 155° opening angle • One piece assembly • 7/16" cup depth • +/- 2mm side adjustment • 35mm boring pattern • Steel, nickel-plated How to Choose A Blum Hinge Mounting Plate Choosing a mounting plate can be challenging even for an experienced cabinet maker! To make the right choice, ...
See More
View Details
Browse by Category
Concealed European Cabinet Hinges
View our complete selection of Concealed European Cabinet Hinges to find the one that suites your needs.
View All
View all Concealed European Cabinet Hinges Questions & Answers
More Questions We've Answered Related to This Product
We’ve provided several answers to questions related to Blum 155° CLIP top BLUMOTION Half Overlay Zero Protrusion Wide Angle Hinge Screw-on Installation Nickel-Plated 71B7650 , see some other helpful Q&A related to this product.
-
Question: What size and type of screw should you use to attach the hinge to the door front? Do you sell them?
Answer: For the screw on hinges we have the #6x5/8" screws that are recommended by the manufacturer.
For a 5mm screw we have euro screws in a wide variety of sizes -
Question: Questions: Does this item work on older 3/8" rabbeted partial overlay/inset cabinets? I was told it does, but would like to be sure before purchasing. Next, does it come in ONYX? Again, I was told it does but can't find any!! THANKS!!
Answer: Please contact customer service for help with hinge matching or replacing older hinges . You can also use our free hinge matching service https://www.woodworkerexpress.com/hin...
