We reviewed every double action hinge in the WE Preferred lineup and narrowed it down to eight picks across three distinct mechanisms. Whether you are outfitting a commercial kitchen, installing a cafe door at home, or replacing worn hardware on a high-traffic saloon door, this list covers every scenario.
Three adjustable barrel spring hinges in the “6 format for full-size swing doors. Two adjustable barrel spring hinges in the 3” format for lighter doors and narrower openings. One non-adjustable spring pivot set for fixed-tension commercial installs. Two gravity pivot hinges for spring-free operation with and without hold-open.
Quick Skim: Best Double Action Hinges
| Best For | Pick | Mechanism | Max Door Weight |
|---|---|---|---|
| Best overall | WE Preferred 6HDCOM Black | Adjustable barrel spring | 75 lbs (2 hinges) |
| Best warm finish | WE Preferred 6HDCOM Polished Brass | Adjustable barrel spring | 75 lbs (2 hinges) |
| Best dark finish | WE Preferred 6HDCOM Oil-Rubbed Bronze | Adjustable barrel spring | 75 lbs (2 hinges) |
| Best fixed-tension pivot | WE Preferred S7012-603 Zinc | Non-adjustable spring pivot | 75 lbs |
| Best compact, warm finish | WE Preferred 3HDCOM Polished Brass | Adjustable barrel spring | 60 lbs (2 hinges) |
| Best compact, dark finish | WE Preferred 3HDCOM Oil-Rubbed Bronze | Adjustable barrel spring | 60 lbs (2 hinges) |
| Best gravity pivot with hold-open | WE Preferred S7512-H Satin Chrome | Gravity pivot | 50 lbs |
| Best gravity pivot, no hold-open | WE Preferred S7512 Satin Chrome | Gravity pivot | 50 lbs |

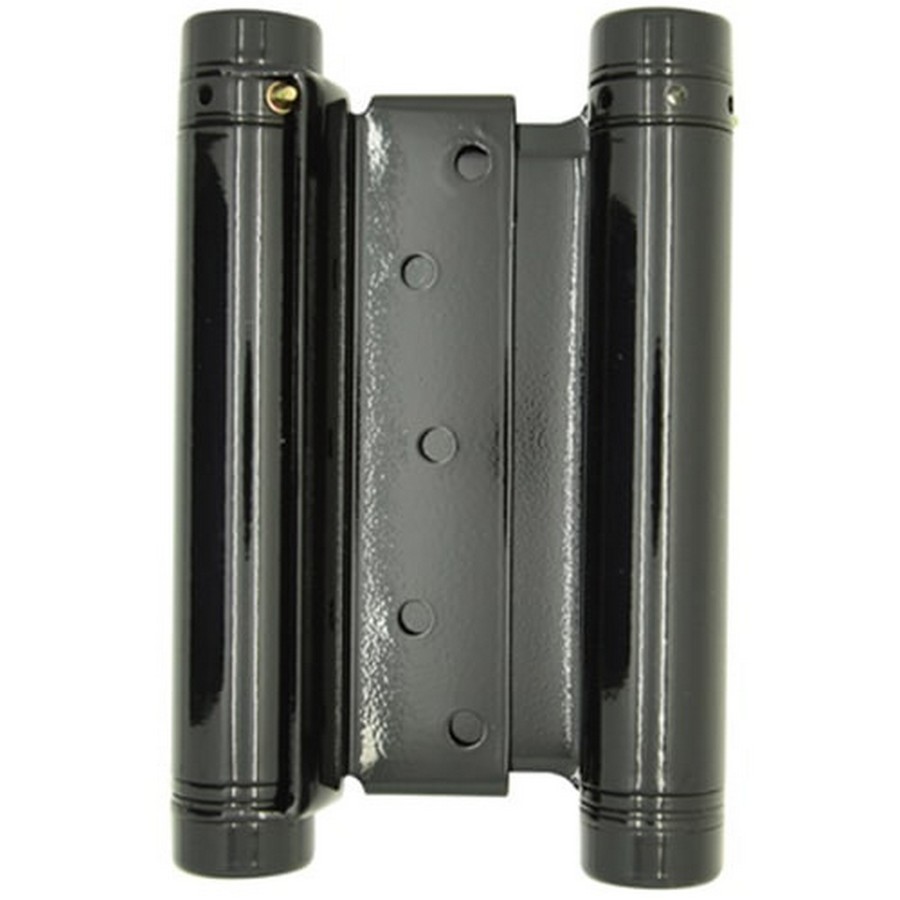

1. WE Preferred 6″ Double Acting Spring Hinge Black (6HDCOM-BLACK)
Editor’s Pick | Best Overall Double Action Spring Hinge
This is the workhorse of the lineup. The 6HDCOM in matte black handles doors up to 75 lbs with two hinges and up to 107 lbs on a 36″ wide door with three. It fits door thicknesses from 1-1/4″ to 1-3/4″ and delivers adjustable spring tension so you control how fast the door returns to center. Commercial-grade machined steel construction. Includes mounting screws and adjusting bar. Sold individually.
- Key benefit: Adjustable spring tension lets you dial in return force for door weight and traffic volume
- Best for: Commercial kitchens, restaurant pass-throughs, mudroom entries, and high-traffic residential swing doors
- Finish: Matte black
Why We Picked It: This hinge covers the widest range of commercial and residential applications on this list. Matte black works across almost every door color and finish scheme. The adjustable tension is the key differentiator over gravity pivot options. When in doubt, start here.

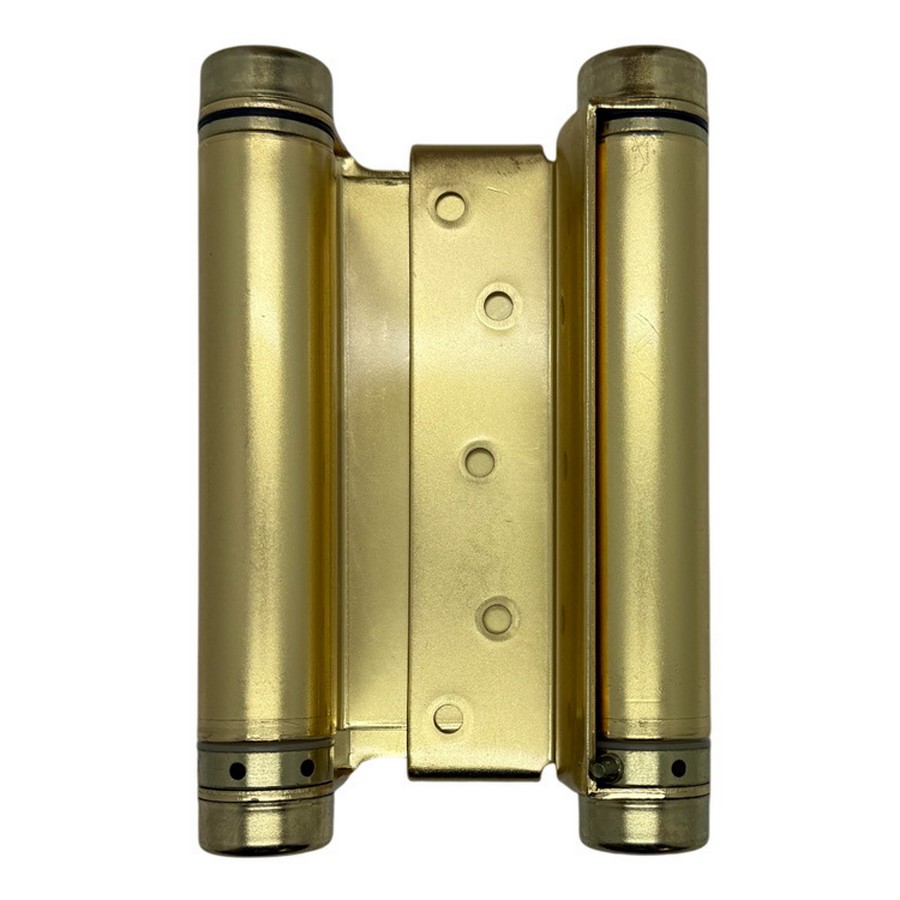

2. WE Preferred 6″ Double Acting Spring Hinge Polished Brass (6HDCOM-POLISHED-BRASS)
Best for Warm Finishes | Traditional and Transitional Interiors
Same commercial-grade barrel spring mechanism as pick 1. Same 75 lb / 107 lb door weight capacity. Same 1-1/4″ to 1-3/4″ door thickness range. Polished brass finish for spaces where the hardware is part of the aesthetic. Sold individually.
- Key benefit: Matches warm-toned door hardware without giving up commercial-grade spring performance
- Best for: Cafe doors, dining room pass-throughs, butler’s pantry entries, and residential swing doors in traditional or transitional interiors
- Finish: Polished brass
Why We Picked It: When finish coordination matters, polished brass is the pick for warm, traditional, or farmhouse-style spaces. You get identical performance to the black version without compromising the look of the room.

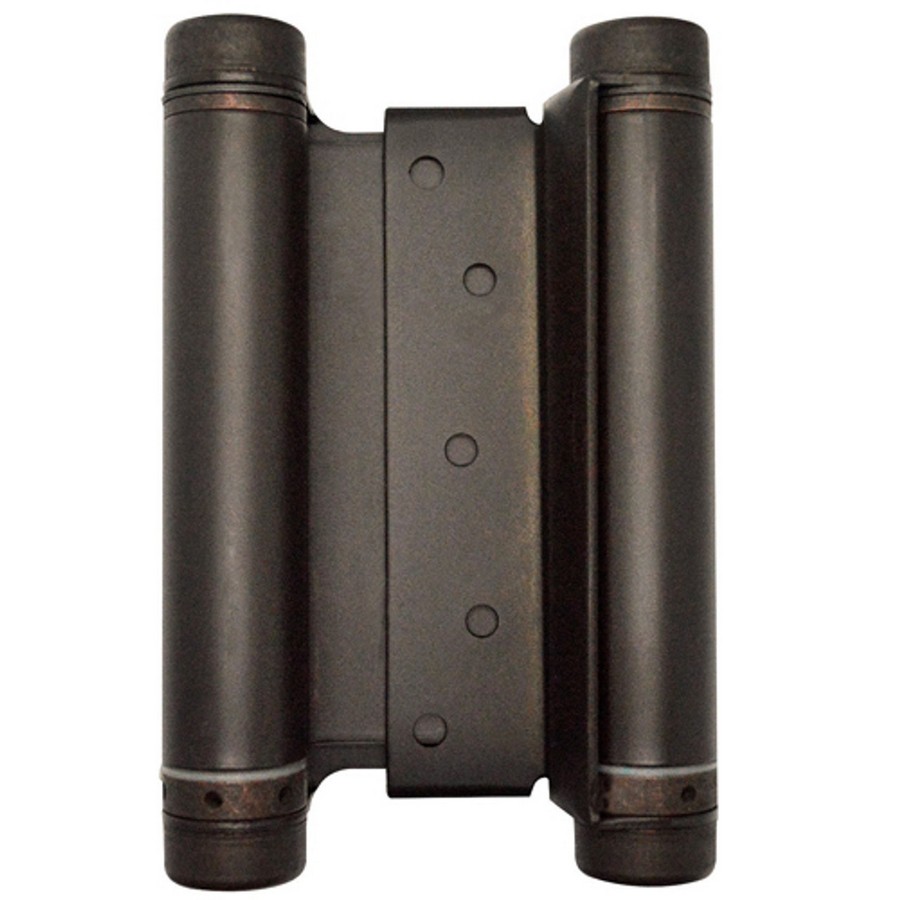

3. WE Preferred 6″ Double Acting Spring Hinge Oil-Rubbed Bronze (6HDCOM-OIL-RUBBED-BRONZE)
Best for Dark and Rustic Finishes | Consistent Hardware Throughout
The same 6HDCOM construction in an oil-rubbed bronze finish. Handles doors up to 75 lbs with two hinges and 107 lbs with three. Fits 1-1/4″ to 1-3/4″ thick doors. Oil-rubbed bronze sits between black and brass, making it the right call for rustic, industrial, or mid-century interiors where the other two finishes do not fit. Sold individually.
- Key benefit: Bridges the gap between black and brass for projects with dark, weathered, or rustic hardware schemes
- Best for: Bar pass-throughs, garage entries, mudrooms, and any project already running oil-rubbed bronze pulls or hinges elsewhere
- Finish: Oil-rubbed bronze
Why We Picked It: Finish matching across a project is easy to overlook and expensive to fix. If you are already using oil-rubbed bronze hardware anywhere on the door or surrounding millwork, this is the correct hinge and the only one on this list in that finish at the 5″ size.

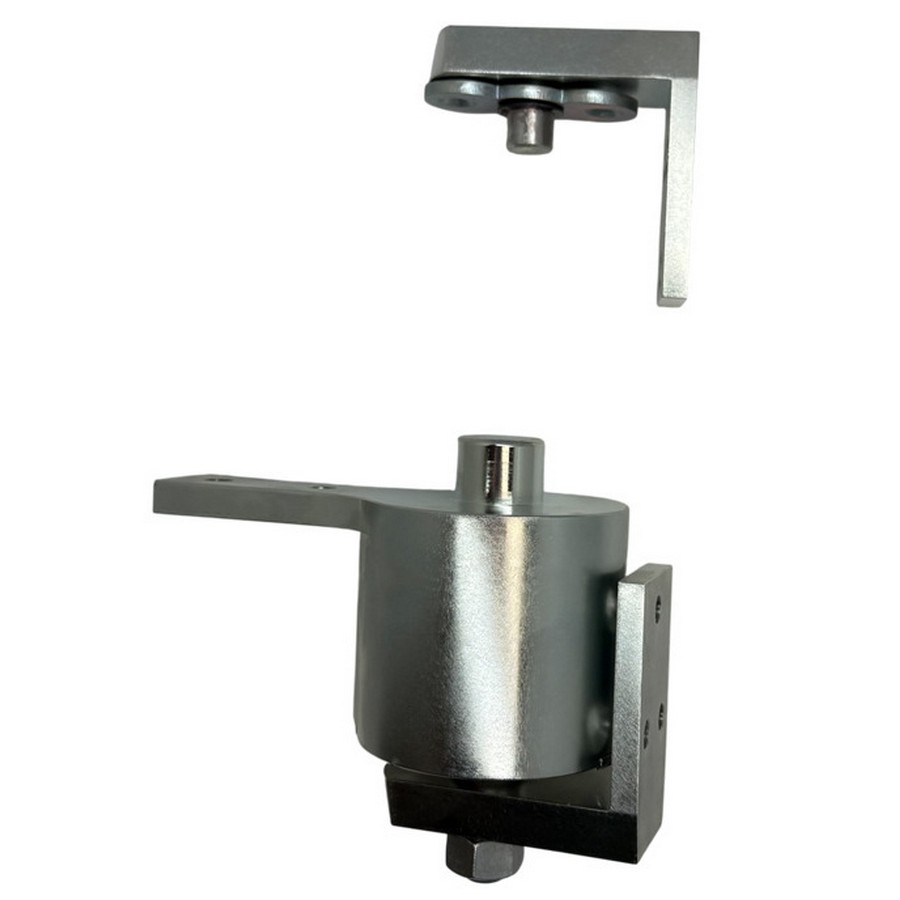

4. WE Preferred Non-Adjustable Double Action Spring Pivot Hinge Set Zinc (S7012-603)
Best Fixed-Tension Spring Pivot | Commercial Pass-Through and Traffic Doors
The S7012 is a fundamentally different install than the barrel spring picks above. It mounts at the top and bottom of the door as a complete pivot set rather than on the door edge. This gives it higher capacity: doors up to 75 lbs and 36″ wide. The spring tension is factory-set and non-adjustable, which eliminates maintenance drift over time. Direct replacement for Bommer 7112/7012. Zinc finish. Kit includes the pivot hinge, jamb and door brackets, top pivot assembly with jamb bracket, and all mounting hardware.
- Key benefit: Pivot-mount design handles heavier doors up to 36″ wide; factory-set tension requires zero maintenance adjustment
- Best for: Courtroom doors, school traffic doors, restaurant half doors, and commercial applications where adjustable tension is not needed and door width exceeds 30″
- Finish: Zinc
Why We Picked It: This is the pick when the door is wider than 30″ and a pivot-mount system is preferred over edge-mounted barrel hinges. The non-adjustable tension is an advantage in commercial settings where repeated re-adjustment creates a maintenance burden.

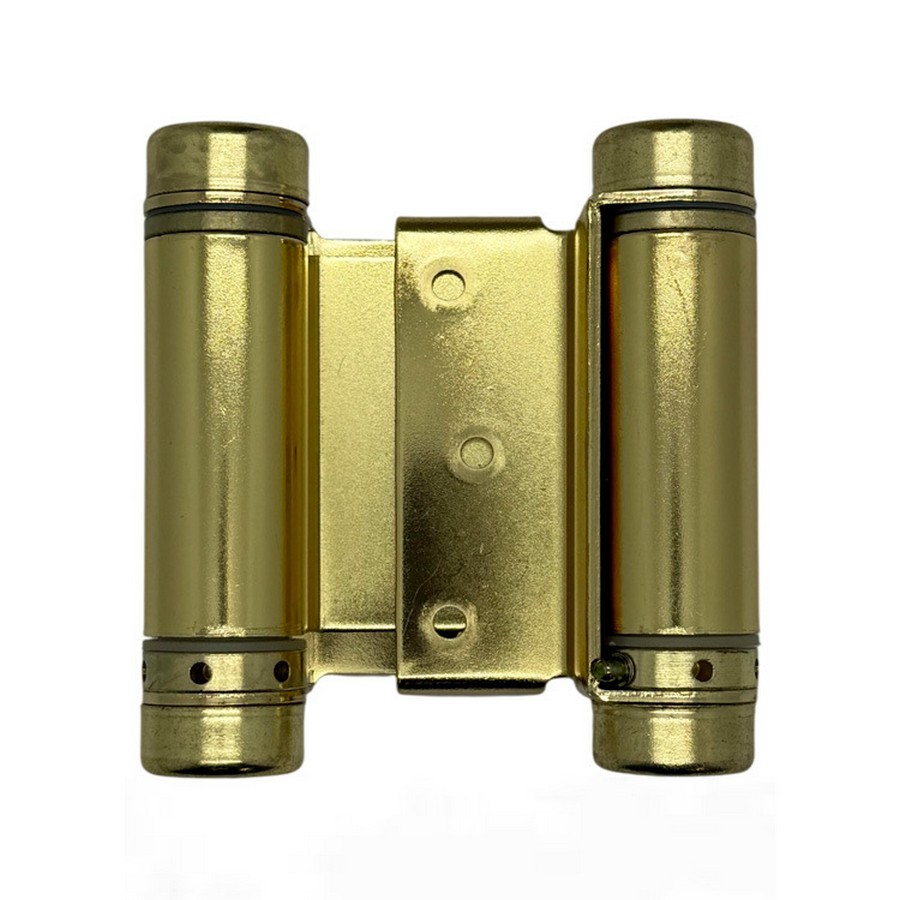

5. WE Preferred 3″ Double Acting Spring Hinge Polished Brass (3HDCOM-POLISHED-BRASS)
Best Compact Spring Hinge, Warm Finish | Lightweight Doors and Narrower Openings
The 3″ barrel spring hinge steps down to handle lighter doors up to 60 lbs with two hinges and thinner door stock from 7/8″ to 1-3/8″ thick. Adjustable spring tension. Polished brass finish. Sold individually. Correct for openings where a 5″ hinge would visually overwhelm the door or the door stock is too thin to accept the larger format.
- Key benefit: Right-sized for lightweight interior swing doors without overbuilding the hardware for the application
- Best for: Lightweight residential cafe doors, narrow laundry room pass-throughs, pantry entries, and smaller kitchen openings
- Finish: Polished brass
Why We Picked It: Matching hinge size to door size is as important as matching door weight capacity. The 3HDCOM in polished brass is the correct call for smaller, lighter doors in traditional or transitional spaces where the 6″ format is too large.

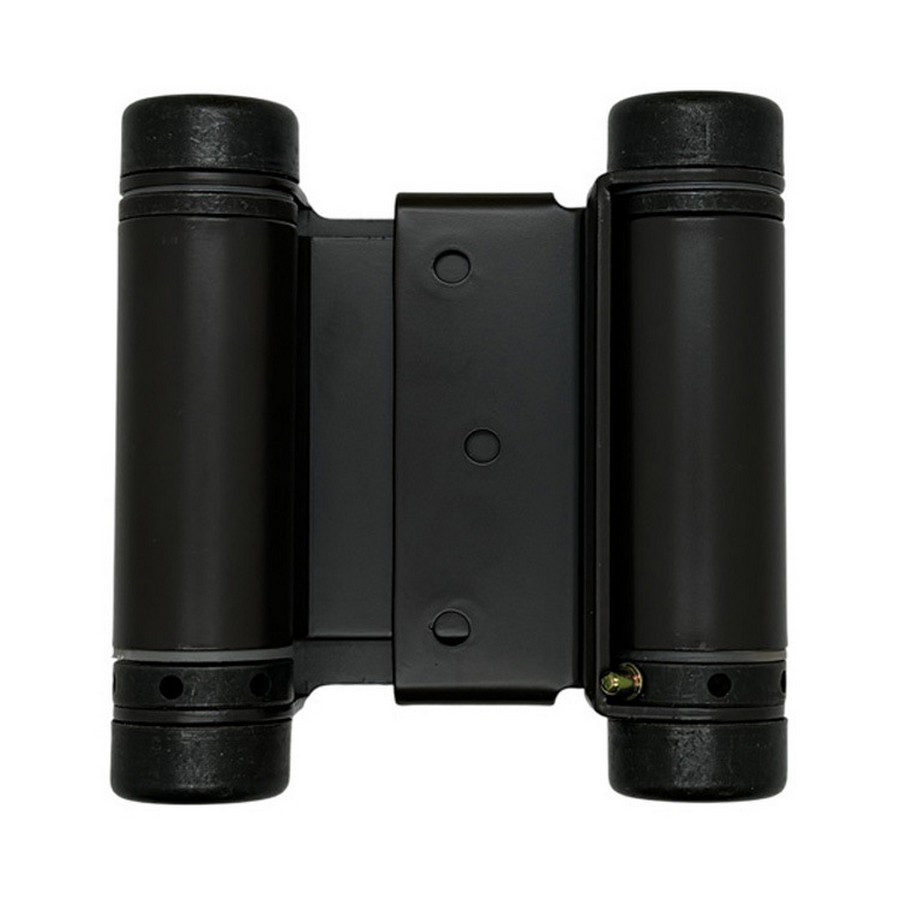

6. WE Preferred 3″ Double Acting Spring Hinge Oil-Rubbed Bronze (3HDCOM-OIL-RUBBED-BRONZE)
Best Compact Spring Hinge, Dark Finish | Lightweight Doors in Rustic or Industrial Spaces
Same 3HDCOM barrel spring construction and 60 lb door weight capacity as pick 5. Same 7/8″ to 1-3/8″ door thickness compatibility. Oil-rubbed bronze finish for smaller doors in darker hardware schemes. Sold individually.
- Key benefit: Compact format with a dark finish for lightweight swing doors in rustic, industrial, or transitional spaces
- Best for: Narrow bar pass-throughs, light interior cafe doors, and any lighter door application already running oil-rubbed bronze hardware
- Finish: Oil-rubbed bronze
Why We Picked It: The 3HDCOM in oil-rubbed bronze fills the one gap the larger picks leave: a smaller door in a darker finish scheme. If the door is thin, light, and the hardware is already bronze, this is the only correct pick on this list.
7. WE Preferred Gravity Double Action Pivot Hinge Set Hold-Open Satin Chrome (S7512-H-652)
Best Gravity Pivot with Hold-Open | Hands-Free Traffic Flow
The S7512-H uses gravity instead of a coiled spring to return the door to center. No tension adjustment required. The door swings in either direction and self-returns using its own weight. The hold-open version locks the door at 90 degrees in either direction when you need it propped. Handles doors up to 50 lbs and 30″ wide. Fits door thickness 7/8″ to 1-5/8″. Each set installs one door and includes flat-head wood screws.
- Key benefit: Gravity-return mechanism needs zero tension maintenance; hold-open locks door at 90 degrees when hands-free access is needed
- Best for: Restaurant server stations, commercial kitchens during service, and accessible entries where hold-open is required
- Finish: Satin chrome
Why We Picked It: The hold-open function separates this from every other pick on this list. If your application requires both automatic center-return and the ability to lock the door open at 90 degrees without additional hardware, this is the only option that does both.

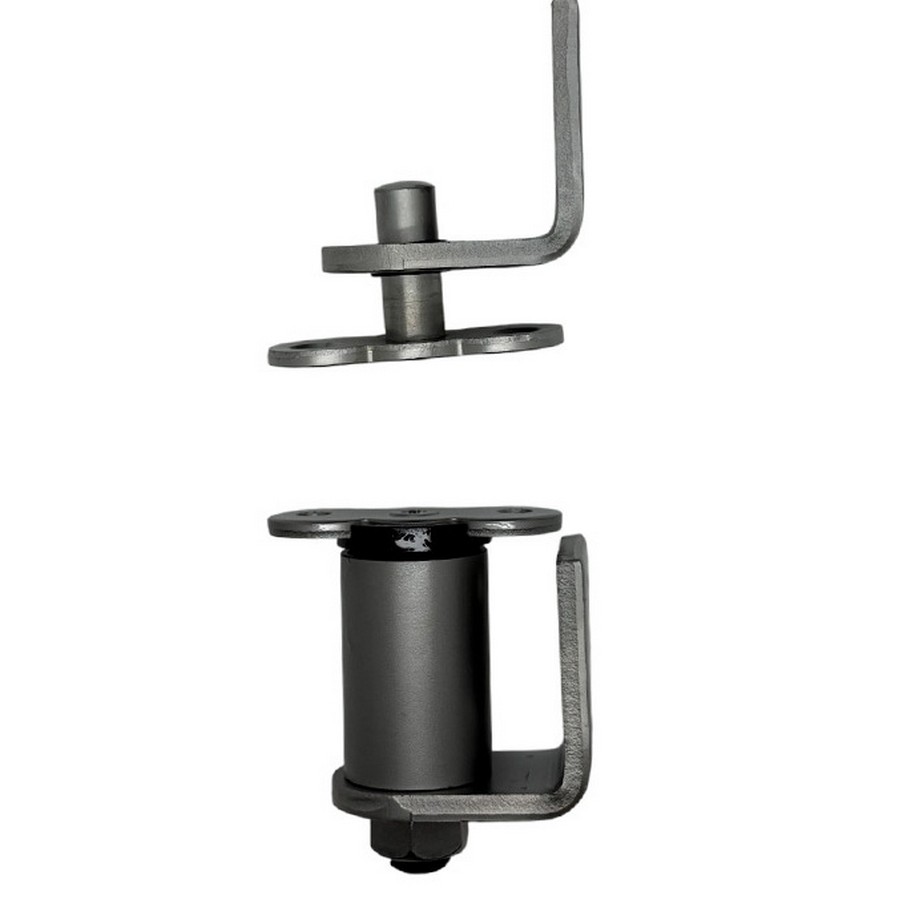

8. WE Preferred Gravity Double Action Pivot Hinge Set Non-Hold-Open Satin Chrome (S7512-652)
Best Gravity Pivot, No Hold-Open | Lowest Maintenance Auto-Return
Same gravity pivot mechanism as pick 7. Same 50 lb capacity, same 30″ max door width, same 7/8″ to 1-5/8″ door thickness range. The door returns to center every time it is released with no hold-open option. Fewer moving parts than any spring-based alternative means lower maintenance over the life of the door. Each set installs one door and includes flat-head wood screws.
- Key benefit: Gravity-return with no spring components means the lowest long-term maintenance of any pick on this list
- Best for: Residential cafe doors, light commercial applications, and any install where automatic center-return is the only function needed
- Finish: Satin chrome
Why We Picked It: The non-hold-open version is the cleaner, simpler install for most residential applications. If you do not need hold-open at 90 degrees, do not add hardware that does it. Gravity return with no spring tension adjustment is the lowest friction ownership experience on this list.
Final Takeaway: Which Double Action Hinge Is Right for You?
Eight picks sounds like a lot. It is not. Each one solves a specific problem, and the right choice comes down to three variables: door weight, door thickness, and whether you need adjustable tension.
Start with the 6HDCOM if your door is full size. The 6″ barrel spring hinge handles the heaviest loads on this list at 75 lbs with two hinges and 107 lbs with three. It is the most versatile pick for both commercial and residential applications with the three finish options; matte black, polished brass, and oil-rubbed bronze. They cover every hardware scheme you are likely to encounter. If you know the door needs a spring hinge and it falls within the 1-1/4″ to 1-3/4″ thickness range, one of the three 6HDCOM variants is almost always the correct answer.
Step down to the 3HDCOM when the door is lighter or thinner. Doors under 60 lbs on thinner stock from 7/8″ to 1-3/8″ do not need a 5″ hinge. The 3HDCOM in polished brass or oil-rubbed bronze gives you the same adjustable spring mechanism in a format sized for the application.
Choose the S7012 when you need a pivot mount and the door is wider than 30″. The non-adjustable spring pivot set handles doors up to 75 lbs and 36″ wide, which exceeds what the S7512 gravity pivots can accommodate. The factory-set tension is an advantage in commercial settings where adjustable hardware creates a recurring maintenance task.
Choose the S7512 gravity pivots when you want the simplest system with the lowest long-term maintenance. No spring tension to set or reset over time. The hold-open version adds one function: locking the door at 90 degrees in either direction. If you need that, get it. If you do not, the standard non-hold-open version is the cleaner install.
The finish and size decisions are secondary. Match the mechanism to the door first, then match the finish to the hardware already in the space. Every pick on this list ships from Woodworker Express with the mounting hardware included, so there are no additional components to source.
If you are still unsure which hinge fits your project, call 1-855-993-4968 or browse the full spring hinge catalog at WoodworkerExpress.com.
